3S Serisi Kırmızı Yay  - Ağır Yük Kalıp Yayı

XLL% Uzun ömür için kapanma oranı Max% Maksimum çalışma mesafesi
S1 Stroke mm F1 Yük (N)
S2 Stroke mm F2 Yük (N)
YÜK: Yayın 1mm kapanması için gerekli olan kuvvet.
(1N = 0,102 Kg, 1Kg = 9,81 N)
TOLERANS
Serbest Boy Minumum ± mm 0,75 veya ± 1% içindedir.

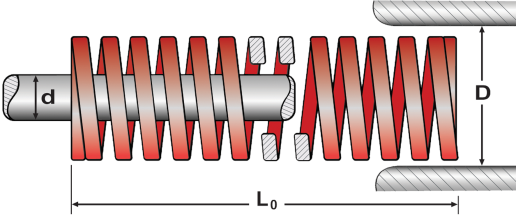

Dış çap Yayların dış çapı her zaman katalogta belirtilen gövde çapondan daha küçüktür.
İç çap Yayların iç çapı her zaman katalogta belirteilen kılavuz pimi çapında daha büyüktür.
D d Lo R XLL 20% XLL 20% Max 30% Max 30% Sipariş Kodu
Dış Çap (mm) İç Çap (mm) Serbest Boy (mm) (N/mm) S1 F1 S2 F2 Sipariş Kodu
10 5 25 23 5 115 7.5 173 3S10025
10 5 32 17.5 6.4 112 9.6 168 3S10032
10 5 38 14.8 7.6 112 11.4 169 3S10038
10 5 44 13 8.8 114 13.2 172 3S10045
10 5 51 11.2 10.2 114 15.3 171 3S10050
10 5 64 9.2 12.8 118 19.2 177 3S10065
10 5 76 7.5 15.2 114 22.8 171 3S10075
10 5 305 1.9 61 116 91.5 174 3S10303
12.5 6.3 25 42.1 5 211 7.5 316 3S13025
12.5 6.3 32 33.2 6.4 212 9.6 319 3S13032
12.5 6.3 38 29.3 7.6 223 11.4 334 3S13038
12.5 6.3 44 24.6 8.8 216 13.2 325 3S13045
12.5 6.3 51 19.6 10.2 200 15.3 300 3S13050
12.5 6.3 64 15 12.8 192 19.2 288 3S13065
12.5 6.3 76 13.2 15.2 201 22.8 301 3S13075
12.5 6.3 89 11.4 17.8 203 26.7 304 3S13090
12.5 6.3 102 9.4 20.4 192 30.6 288 3S13101
12.5 6.3 305 3.2 61 195 91.5 293 3S13303
16 8 25 75.7 5 379 7.5 568 3S16025
16 8 32 60.2 6.4 385 9.6 578 3S16032
16 8 38 50.8 7.6 386 11.4 579 3S16038
16 8 44 42.8 8.8 377 13.2 565 3S16045
16 8 51 37.1 10.2 378 15.3 568 3S16050
16 8 67 30.3 12.8 388 19.2 582 3S16065
16 8 76 25.8 15.2 392 22.8 588 3S16075
16 8 89 21.7 17.8 386 26.7 579 3S16090
16 8 102 18.9 20.4 386 30.6 578 3S16101
16 8 115 17 23 391 34.5 587 3S16115
16 8 305 6.3 61 384 91.5 576 3S16303
20 10 25 216 5 1080 7.5 1620 3S19025
20 10 32 168 6.4 1075 9.6 1613 3S19032
20 10 38 129 7.6 980 11.4 1471 3S19038
20 10 44 112 8.8 986 13.2 1478 3S19045
20 10 51 94 10.2 959 15.3 1438 3S19050
20 10 64 72.1 12.8 923 19.2 1384 3S19065
20 10 76 59.7 15.2 907 22.8 1361 3S19075
20 10 89 50.5 17.8 899 26.7 1348 3S19090
20 10 102 44.2 20.4 902 30.6 1353 3S19101
20 10 115 38.4 23 883 34.5 1325 3S19115
20 10 127 34.1 25.4 866 38.1 1299 3S19126
20 10 139 31 27.8 862 41.7 1293 3S19140
20 10 152 28.2 30.4 857 45.6 1286 3S19151
20 10 305 14 61 854 91.5 1281 3S19303
25 12.5 25 375 5 1875 7.5 2813 3S26025
25 12.5 32 297 6.4 1901 9.6 2851 3S26032
25 12.5 38 219 7.6 1664 11.4 2497 3S26038
25 12.5 44 187 8.8 1646 13.2 2468 3S26045
25 12.5 51 156 10.2 1591 15.3 2387 3S26050
25 12.5 64 123 12.8 1574 19.2 2362 3S26065
25 12.5 76 99 15.2 1505 22.8 2257 3S26075
25 12.5 89 84 17.8 1495 26.7 2243 3S26090
25 12.5 102 73 20.4 1489 30.6 2234 3S26101
25 12.5 115 65 23 1495 34.5 2243 3S26115
25 12.5 127 57.7 25.4 1466 38.1 2198 3S26126
25 12.5 139 52.7 27.8 1465 41.7 2198 3S26140
25 12.5 152 47.8 30.4 1453 45.6 2180 3S26151
25 12.5 178 41 35.6 1460 53.4 2189 3S26176
25 12.5 203 35.8 40.6 1453 60.9 2180 3S26202
25 12.5 305 22.9 61 1397 91.5 2095 3S26303
32 16 38 388 7.6 2949 11.4 4423 3S32038
32 16 44 324 8.8 2851 13.2 4277 3S32045
32 16 51 272 10.2 2774 15.3 4162 3S32050
32 16 64 212 12.8 2714 19.2 4070 3S32065
32 16 76 172 15.2 2614 22.8 3922 3S32075
32 16 89 141 17.8 2510 26.7 3765 3S32090
32 16 102 122 20.4 2489 30.6 3733 3S32101
32 16 115 107 23 2461 34.5 3692 3S32115
32 16 127 93 25.4 2362 38.1 3543 3S32126
32 16 139 86 27.8 2391 41.7 3586 3S32140
32 16 152 78 30.4 2371 45.6 3557 3S32151
32 16 178 67.2 35.6 2392 53.4 3588 3S32176
32 16 203 59.1 40.6 2399 60.9 3599 3S32202
32 16 254 46.4 50.8 2357 76.2 3536 3S32252
32 16 305 38 61 2318 91.5 3477 3S32303
40 20 51 350 10.2 3570 15.3 5355 3S38050
40 20 64 269 12.8 3443 19.2 5165 3S38065
40 20 76 219 15.2 3329 22.8 4993 3S38075
40 20 89 190 17.8 3382 26.7 5073 3S38090
40 20 102 163 20.4 3325 30.6 4988 3S38101
40 20 115 142 23 3266 34.5 4899 3S38115
40 20 127 128 25.4 3251 38.1 4877 3S38126
40 20 139 115 27.8 3197 41.7 4796 3S38140
40 20 152 105 30.4 3192 45.6 4788 3S38151
40 20 178 89 35.6 3168 53.4 4753 3S38176
40 20 203 77 40.6 3126 60.9 4689 3S38202
40 20 254 61 50.8 3099 76.2 4648 3S38252
40 20 305 51 61 3111 91.5 4667 3S38303
50 25 64 413 12.8 5286 19.2 7930 3S51065
50 25 76 339 15.2 5153 22.8 7729 3S51075
50 25 89 288 17.8 5126 26.7 7690 3S51090
50 25 102 245 20.4 4998 30.6 7497 3S51101
50 25 115 215 23 4945 34.5 7418 3S51115
50 25 127 192 25.4 4877 38.1 7315 3S51126
50 25 139 168 27.8 4670 41.7 7006 3S51140
50 25 152 154 30.4 4682 45.6 7022 3S51151
50 25 178 134 35.6 4770 53.4 7156 3S51176
50 25 203 117 40.6 4750 60.9 7125 3S51202
50 25 254 89 50.8 4521 76.2 6782 3S51252
50 25 305 73 61 4453 91.5 6680 3S51303
63 38 76 630 15.2 9576 22.8 14364 3S63075
63 38 89 485 17.8 8633 26.7 12950 3S63090
63 38 102 434 20.4 8854 30.6 13280 3S63101
63 38 115 384 23 8832 34.5 13248 3S63115
63 38 127 349 25.4 8865 38.1 13297 3S63126
63 38 152 276 30.4 8390 45.6 12586 3S63151
63 38 178 237 35.6 8437 53.4 12656 3S63176
63 38 203 210 40.6 8526 60.9 12789 3S63202
63 38 254 165 50.8 8382 76.2 12573 3S63252
63 38 305 134 61 8174 91.5 12261 3S63303
